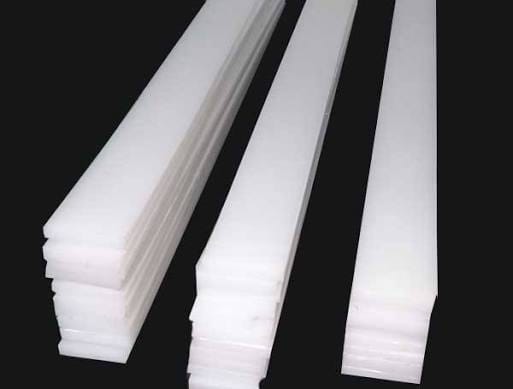

UHMWPE Wear Strips: Benefits, Applications and Selection Guide

UHMWPE wear strips are used in conveyors, mining equipment, material handling systems, and industrial machinery to protect surfaces from repeated friction and abrasion.

UHMWPE is a practical choice for these applications because it combines low friction, high wear resistance, impact strength, and very low moisture absorption. However, material grade, thickness, load, speed, temperature, and installation all affect how well a wear strip performs.

This guide covers the main applications of UHMWPE wear strips and the factors engineers and buyers should consider when selecting them.

For a broader overview of engineering plastic selection, see the Engineering Plastic Sheet range from Yunzhan, which includes UHMWPE, HDPE, Nylon, PP, and other industrial plastic materials.

What Is a UHMWPE Wear Strip?

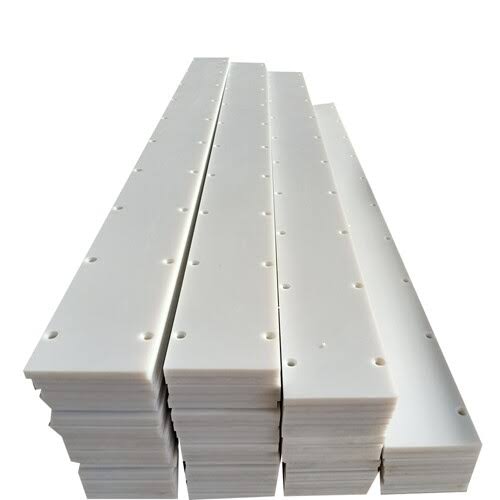

A UHMWPE wear strip is a replaceable plastic component designed to absorb friction, abrasion, or repeated contact between moving parts.

UHMWPE stands for Ultra High Molecular Weight Polyethylene. Unlike ordinary polyethylene, UHMWPE is engineered for demanding applications where wear resistance and low-friction performance are important.

A wear strip can be installed between two moving or contacting surfaces so that the plastic takes the wear instead of the more expensive machine component.

Typical examples include:

• Conveyor wear strips
• Chain guide strips
• Side guides
• Sliding rails
• Wear pads
• Guide blocks
• Machine liners
• Material handling strips

The basic principle is simple: use a replaceable, low-friction surface to protect the equipment underneath.

This can reduce metal-to-metal contact and make routine maintenance more predictable.

Yunzhan’s product range includes UHMWPE sheets with thicknesses from 3 to 200 mm and widths up to 5,260 mm, with customized lengths available for industrial applications.

Why Is UHMWPE Used for Wear Strips?

UHMWPE is particularly attractive for wear strips because several of its properties work together.

Its low coefficient of friction helps moving components slide more easily, while its abrasion resistance allows the strip to withstand repeated contact.

It also offers high impact resistance, low moisture absorption, and good chemical resistance.

These characteristics make UHMWPE useful in environments where a conventional metal wear surface could create excessive friction, noise, corrosion, or maintenance requirements.

For example, a conveyor chain running continuously against a metal guide can create significant friction and noise. Replacing the contact surface with an appropriately designed UHMWPE guide can provide a smoother sliding interface.

This does not mean UHMWPE eliminates every conveyor problem. Incorrect alignment, excessive load, inadequate support, unsuitable profiles, or poor fastening can still cause premature wear.

The material is only one part of the solution.

Where Are UHMWPE Wear Strips Used?

UHMWPE wear strips are used across many industries because the same basic wear problem appears in different types of equipment.

Common applications include:

Yunzhan identifies Mining & Coal, Ports & Terminals, General Machinery, Paper & Textile, and Chemical & Environmental among the industries where its engineering plastic products are used.

That makes UHMWPE wear strips particularly relevant to equipment exposed to continuous movement, abrasive materials, or harsh operating environments.

UHMWPE Wear Strips for Conveyor Systems

Conveyor systems are one of the most common applications for UHMWPE wear strips.

A conveyor may run for many hours every day, meaning even relatively low friction can become significant over time.

Wear strips can be used to guide or support:

• Chains
• Rollers
• Belts
• Sliding products
• Containers
• Pallets
• Material handling components

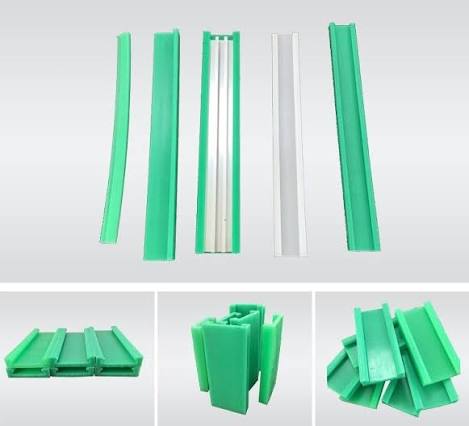

For chain conveyor applications, the wear strip needs to provide a stable path while allowing the chain to move without excessive friction.

Yunzhan’s existing UHMWPE Chain Guide Rail Selection Guide goes into more detail on chain size, guide profiles, mounting methods, running speed, environmental conditions, and replacement planning.

This is a useful related resource to link from a wear-strip article because chain guide rails are essentially a specialized form of UHMWPE wear component.

How Does a UHMWPE Wear Strip Reduce Maintenance?

A wear strip is designed to be a sacrificial component.

Instead of allowing the conveyor frame, machine housing, or other expensive component to wear directly, the replaceable strip takes the contact.

When the strip reaches the end of its usable life, it can be replaced without rebuilding the entire machine.

This approach can simplify maintenance in several ways.

First, the wear component is relatively easy to inspect.

Second, replacement can be planned according to operating hours or measured wear.

Third, the main machine structure is protected from direct abrasion.

For high-throughput operations, this can be more valuable than simply choosing the material with the lowest initial price.

The objective is to create a predictable maintenance cycle rather than wait for an unexpected equipment failure.

What Thickness Should a UHMWPE Wear Strip Be?

There is no universal thickness that works for every wear strip.

A thin strip may be sufficient for a lightly loaded guide with strong backing support, while a thicker UHMWPE component may be needed for heavy abrasion, impact, or a large unsupported span.

Important factors include:

• Applied load
• Contact pressure
• Abrasion level
• Impact
• Support beneath the strip
• Fastening method
• Expected service life
• Available installation space

For example, a UHMWPE strip supported continuously by a rigid steel structure can behave very differently from a thick liner spanning a larger unsupported area.

Yunzhan’s current UHMWPE sheet range covers thicknesses from 3 to 200 mm, which allows the material to be selected for applications ranging from relatively thin wear surfaces to heavier industrial components.

Thickness should therefore be specified together with the actual operating conditions rather than selected simply because a particular size is readily available.

Does Higher Thickness Always Mean Longer Service Life?

Not necessarily.

A thicker UHMWPE wear strip provides more wear allowance, but thickness alone does not determine service life.

A poorly aligned conveyor can wear through a thick strip faster than a correctly designed system using a thinner component.

Similarly, excessive contact pressure can create localized wear even when the overall strip is relatively thick.

Service life is influenced by the relationship between:

Load + Contact Area + Speed + Abrasion + Temperature + Installation

This is why experienced suppliers often ask for application information before recommending a specific thickness.

The correct design uses enough material to provide the required wear allowance without unnecessarily increasing weight, cost, or installation difficulty.

How Important Is Contact Pressure?

Contact pressure is one of the most important factors in wear-strip selection.

When the load is concentrated over a small area, the local pressure on the UHMWPE can become significantly higher.

This can increase deformation and accelerate wear.

A wider contact area can distribute the load more evenly.

For this reason, engineers should consider both the total load and the actual contact area.

A component supporting 500 kg over a large surface may create a very different condition from a component carrying the same load through a narrow contact point.

When requesting a quotation, providing the supplier with the approximate load and contact dimensions can make the material recommendation much more useful.

UHMWPE Wear Strips and Operating Speed

Speed also matters.

As sliding speed increases, frictional heat can become more important.

A wear strip that performs well at a low speed may behave differently under continuous high-speed operation.

For conveyor applications, suppliers may need to know:

• Chain speed
• Belt speed
• Rotation speed
• Operating hours per day
• Continuous or intermittent operation

The higher the speed and operating time, the more important it becomes to consider the complete friction and heat environment.

This is particularly relevant for high-speed conveyor systems where a wear strip is in continuous contact with moving components.

UHMWPE Wear Strips in Mining Applications

Mining equipment creates particularly demanding wear conditions.

Rock, coal, ore, and other bulk materials can produce continuous abrasion and impact.

A metal surface may eventually wear, corrode, or create high friction. UHMWPE can provide a lightweight, replaceable wear surface for selected applications.

Typical mining uses include:

• Chute liners
• Hopper liners
• Conveyor components
• Wear plates
• Sliding surfaces
• Material transfer points

Yunzhan specifically lists Mining & Coal as an application area for its engineering plastics, noting their use in resisting material scouring and helping extend conveyor equipment service life.

For mining applications, impact and abrasion should both be considered.

A liner designed only around abrasion may not provide sufficient impact resistance if large pieces of material repeatedly fall onto the surface.

UHMWPE Wear Strips for Material Handling

Material handling equipment often needs plastic components that allow products to move smoothly while reducing damage to both the product and the machine.

UHMWPE can be used for:

• Guide strips
• Sliding rails
• Transfer surfaces
• Chute liners
• Wear pads
• Conveyor guides

Its low friction can help reduce resistance during movement.

Its non-metallic surface can also be useful where the contact material needs to be protected from scratching or excessive surface damage.

This makes UHMWPE relevant to packaging, logistics, manufacturing, and automated handling systems.

UHMWPE Wear Strips for Food Processing Equipment

Food-processing environments create a different set of requirements.

Equipment may be exposed to:

• Frequent washdown
• Moisture
• Cleaning chemicals
• Continuous movement
• Strict hygiene requirements

UHMWPE can be considered for selected food-processing wear components because of its low moisture absorption, low friction, and resistance to many chemicals.

However, material grade and regulatory requirements matter.

If the component will have direct or indirect food contact, the buyer should specify the applicable requirements to the supplier before production rather than assuming every UHMWPE grade is automatically suitable.

Yunzhan lists Food & Pharmaceutical among its application industries and notes that applicable products are designed around contact standards and cleanability requirements.

UHMWPE vs HDPE for Wear Strips

UHMWPE and HDPE are both polyethylene materials, but they are not equivalent in demanding wear applications.

UHMWPE is generally the stronger candidate when the primary requirement is:

• High abrasion resistance
• Low friction
• Continuous sliding
• Long wear life
• Impact resistance

HDPE is often selected for more general-purpose applications where chemical resistance, moisture resistance, fabrication, and cost are more important than maximum wear performance.

For a detailed comparison, see UHMW PE Sheet vs HDPE Sheet.

Yunzhan’s HDPE range includes sheets designed for industrial applications, including machinery, mining, chemical, environmental, and other operating environments.

The correct material depends on the actual failure mechanism.

If the strip is wearing rapidly because of continuous sliding, UHMWPE is generally the more relevant material to investigate.

UHMWPE vs Nylon for Wear Strips

Nylon is another material that may be considered for wear components.

Nylon can provide high mechanical strength, stiffness, toughness, and good wear performance.

UHMWPE has different strengths, particularly very low friction, high abrasion resistance, impact resistance, and low moisture absorption.

For a more detailed material comparison, see UHMWPE vs Nylon. Yunzhan’s existing article compares the two materials by wear, friction, strength, and applications.

As a general rule, UHMWPE is often more attractive when the wear strip is primarily a sliding and abrasion component, while Nylon can be more appropriate when greater stiffness and mechanical strength are required.

Should a Wear Strip Be Lubricated?

One reason UHMWPE is attractive for sliding applications is its naturally low friction.

Depending on the equipment design, lubrication may be reduced or unnecessary.

However, this should not be interpreted as meaning that every UHMWPE wear strip can operate completely without consideration of lubrication.

The operating load, speed, temperature, mating surface, and environment still matter.

In some systems, eliminating unnecessary lubrication can simplify maintenance and reduce contamination concerns.

In others, the overall machine may still require lubrication for bearings, chains, sprockets, or other moving components.

The wear strip should therefore be evaluated as part of the complete machine rather than as an isolated component.

How Should UHMWPE Wear Strips Be Mounted?

Mounting can have a major effect on service life.

Common methods include:

• Countersunk bolts
• Screws
• Clips
• Mechanical retainers
• Backing plates
• Custom mounting channels

The fastening method should keep the wear surface smooth and prevent hardware from interfering with the moving component.

For long strips, thermal movement should also be considered.

A UHMWPE strip should not always be fixed rigidly at every point without considering expansion and contraction.

The correct mounting pattern depends on strip length, operating temperature, backing material, and machine design.

Yunzhan’s UHMWPE Chain Guide Rail Selection Guide provides additional guidance on mounting, fastener layout, backing support, and thermal movement.

When Should You Use a Custom UHMWPE Wear Strip?

Standard strips are practical when the equipment uses common dimensions and profiles.

Custom fabrication becomes more useful when the machine requires:

• Non-standard dimensions
• Special hole patterns
• Curved sections
• Recessed areas
• Countersunk holes
• Complex profiles
• CNC-machined surfaces
• Replacement parts matching an existing component

A custom wear strip can also be useful when the original component has repeatedly failed and the design needs to be improved rather than simply replaced.

Yunzhan offers customized processing solutions alongside its engineering plastic products, with technical support covering material selection, structural design, drawing optimization, and sample testing.

What Information Should You Send to a UHMWPE Supplier?

A supplier can give a much more useful recommendation when the quotation request includes application information.

At minimum, provide:

If you have an existing wear strip that is failing, sending photographs and measurements of the worn surface can also help the supplier understand the failure mode.

For large industrial projects, a technical drawing is even better because it allows dimensions, tolerances, hole positions, and mounting details to be reviewed before production.

How Can You Tell When a UHMWPE Wear Strip Needs Replacement?

A wear strip does not necessarily need to be replaced simply because its surface looks polished.

More useful warning signs include:

• Deep grooves
• Uneven wear
• Cracks
• Excessive deformation
• Loose fasteners
• Exposed backing material
• Chain misalignment
• Increased operating noise
• Increased friction
• Visible contact with the machine frame

A wear strip should be inspected as part of routine equipment maintenance.

If the strip is developing uneven wear, replacing it without identifying the cause may only repeat the same failure.

The underlying problem could be misalignment, excessive pressure, inadequate support, incorrect profile, or an unsuitable material grade.

How to Improve UHMWPE Wear Strip Service Life

A longer service life does not always require a thicker or more expensive material.

Start with the basics:

Match the material to the application.

A severe abrasive application needs different performance from a lightly loaded guide.

Distribute the load.

Avoid unnecessary point loading and provide adequate backing support.

Keep moving components aligned.

Misalignment can create concentrated wear and edge damage.

Use an appropriate mounting method.

Fasteners should not interfere with the moving surface.

Inspect before failure.

Replace the wear strip before the machine structure itself begins to suffer damage.

These simple measures can often have as much impact on service life as changing the material.

Why Choose UHMWPE for Industrial Wear Components?

The main reason to choose UHMWPE is not simply that it is a strong plastic.

It is the combination of properties.

UHMWPE can provide:

• High abrasion resistance
• Low friction
• High impact resistance
• Low moisture absorption
• Good chemical resistance
• Lightweight construction
• Easy fabrication
• Replaceable wear surfaces

These characteristics make it particularly useful where conventional metal components experience excessive wear or friction.

Yunzhan’s current product portfolio includes UHMWPE sheets, UHMWPE chain guide rails, UHMWPE cushion blocks, UHMWPE liners, marine sliding panels, and other customized components.

This allows customers to use the same material family across multiple wear-related applications where the operating requirements are compatible.

FAQ
